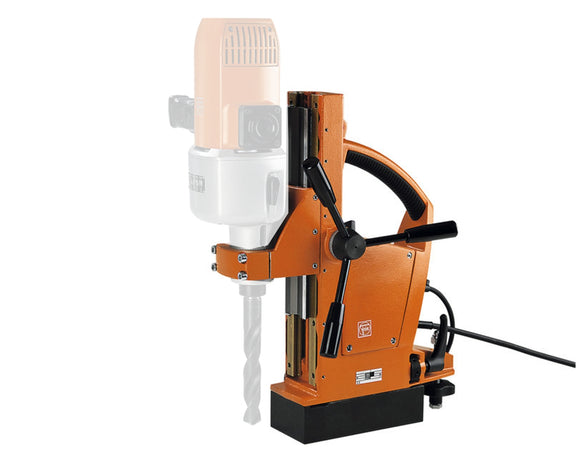

Magnetic drill stand MBS32F

Magnetic drill stand MBS32F

Fein SKU: 90316223008

$2,995.00 $6,492.99 Save $3,497.99

Tax includedShipping calculated at checkout

Description Details Specifications

Flexible magnetic drill jig with fine adjustment for rotary drills with up to 32 mm drill capacity.

  • Universal suitability for drilling, tapping, reaming and countersinking.
  • Fine adjustment of drill spindle for easy alignment of machine without constantly removing and refitting the magnet.
  • High magnetic holding power and safety circuit guarantee safe working in any position.
  • Infinitely variable stroke range setting.
  • Compact design.
  • Optimum power-to-weight ratio.
  • Robust and accurate dual dove-tail guide.
  • Universal use for drive machines with clamping collar.
Input 130W
Socket max. 16 A
For collar Ø 63/65mm
Twist drill max. 32mm
Tapping M 24
Countersinking max. Ø 60mm
Reaming max. Ø 40mm
Stroke 178mm
Total stroke range 365mm
Adjustment range for drill jigs 10mm
Swivel range for drill jigs 350°
Magnetic holding power 18,000 N
Magnetic foot dimensions  220 x 100mm
Cable with plug 4m
Weight according to EPTA 21.8kg
